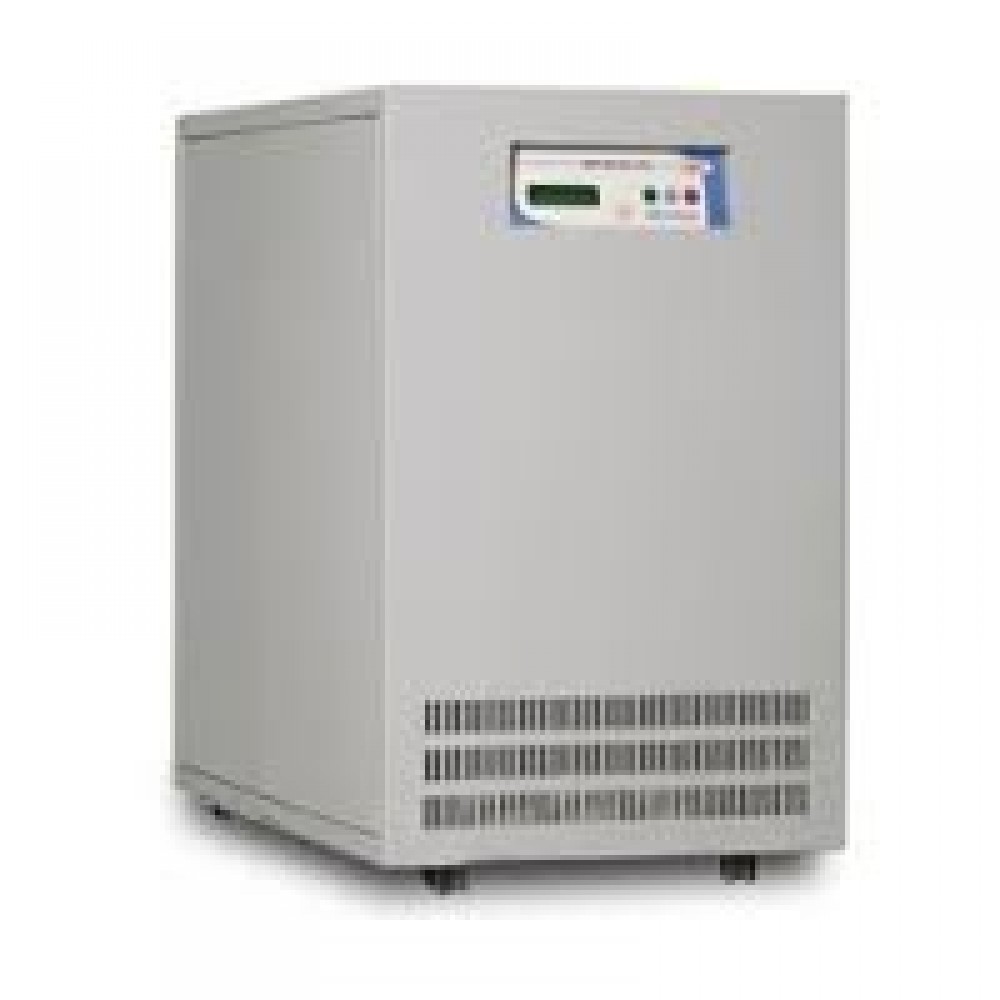

Specifications of Su-Kam 3In-3out Online Ups IQ3315k 15KVA
Type
3 phase input - 3 phase output
Series
IntelliQ Online UPS
Technology
DSP based Double Conversion Online UPS system with True Galvanic Isolation
Ratings
15 KVA
Model
IQ3315K
Capacity
15 KVA
No. of Phases
3 Phase – 4 Wire
Voltage Range
310 V – 480 Volt AC
Input Frequency Range
45 – 55 Hz
Power
12000 W
Load PF Range
0.8 lagging
Phase
3 Phase- 4 Wire
Output Waveform
Pure Sine Wave
Voltage
400V ± 2% (P-P), 380V & 415V user selection also available
Frequency
50Hz +/-0.1Hz
Load Crest Factor
> 3:1
Output Voltage THD
<=3% on Linear Load
Loading Capacity
110% for 8 Minutes/ 125% for 1 Min/ 150% for 13 Sec
Capacity
125% continues
Maintenance By-Pass
Available
No. of 12V Batteries
30
Voltage
360 V DC
Battery Charging current
10 Amp
Battery Recommendation
From 7.2 Ah to 200 Ah
Battery Self Test
Automatic & Manual
Communication port
RS-232 Server and Client
Operating System
Windows95/98/NT/2000/XP
Indication
LCD pannel
Alarm
Mains Failure, Battery Low, Over Load Short Circuit
Protection
Short Circuit , Over Voltage & Under Voltage Protection.
Cooling
Forced Air Cooling
UPS Efficiency
> 90%
Operating Temperature
0-45DegC
Operating Humidity
95% Condensing
Monitoring Software
Additional Software available for remote monitoring
Accoustic Noise
<45 Db at 1 meter
Protection Class
Ip20
UPS Weight (Without Batteries)
198Kg
Dimension (L x W x H) (In mm)
(450 x 700 x 700)
