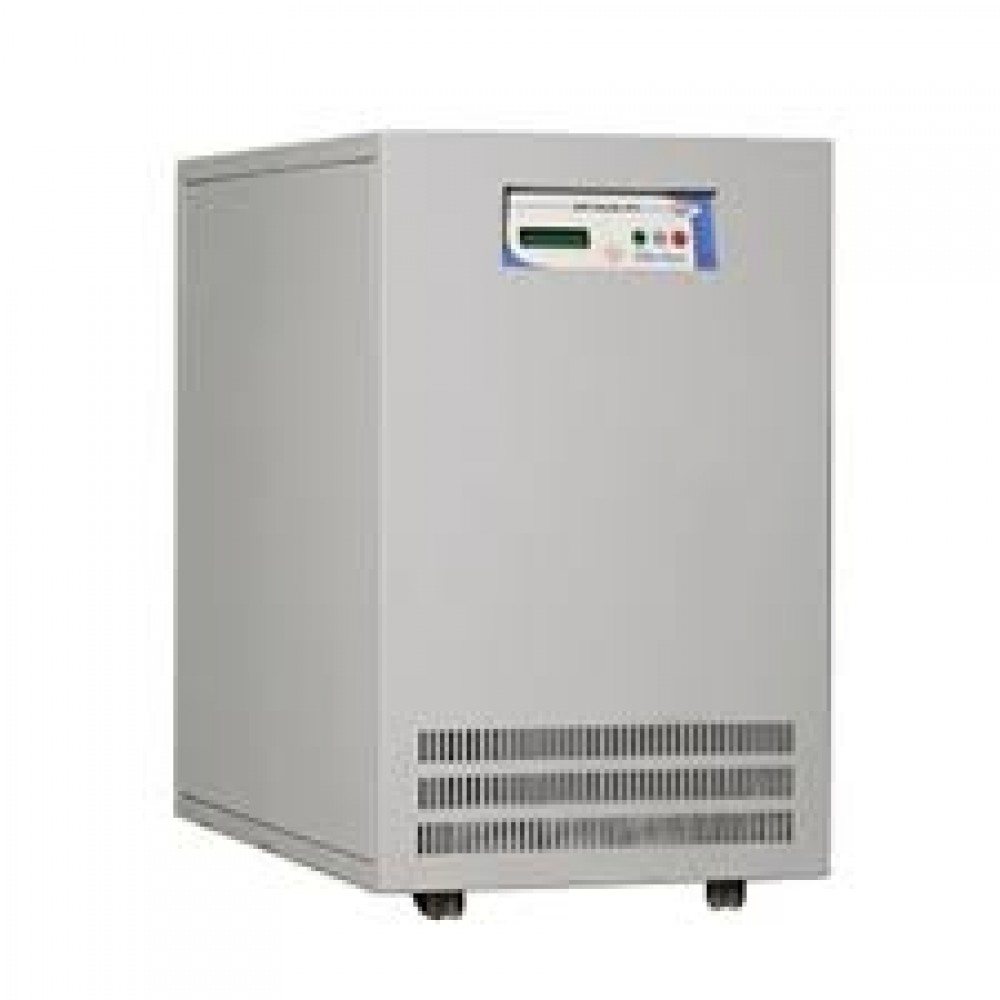

      Specifications of Microtek 3In-3out Online Ups 25Kva
 Model
                     Supermax-Series-I
                     Capacity

5KVA to 30KVA
                     Technology
                     Double Conversion high Freq. Switching PWM, using IGBT's
                     Input Voltage
                     360V AC~450V AC ± 5V AC, Three Phase
                     Frequency

45~55Hz
                     Phase
                     Three Phase Three Wire (compatible for phase reversal)
                     Generator Compatibility

Present

                     Output Voltage
                     400V AC Phase to Phase ± 3% on 100% unbalance load
                     Frequency Range
                     50Hz ± 0.5%
                     Phase
                     Three Phase Four Wire
                     THD (Liner Load)
                     <3%
                     THD (Non-Liner Load)
                     <5%
                     Overload Capability
                     125% for 2minuted / 150% for 30Seconds
                     Crest Factor
                     3:1 (max)
                     Shot Circuit Protection
                     Instant
                     Waveform
                     Pure Sine Wave

                     Static Bypass (optional)
                     ? 10ms

                     Inverter Efficiency
                     ? 90% on rated full load

                     Overall Efficiency
                     ? 80%
                     DC Voltage
                     360V DC
                     Mimic Control Panel

LED for UPS status and LCD for Voltage, Current & Frequency
                     Audible Alarm
                     For Battery Low / DC High / Output High
                     Noise Level

? 50dB

                     Transient Response
                     For 100% step load charge, ± 5% and recovers to normal within 20 miliseconds.
                     Ambient Temperature / Relative Humidity
                     0-45° C / 0-95% Non-Condensing
                     Cooling
                     Forced Aircooled
