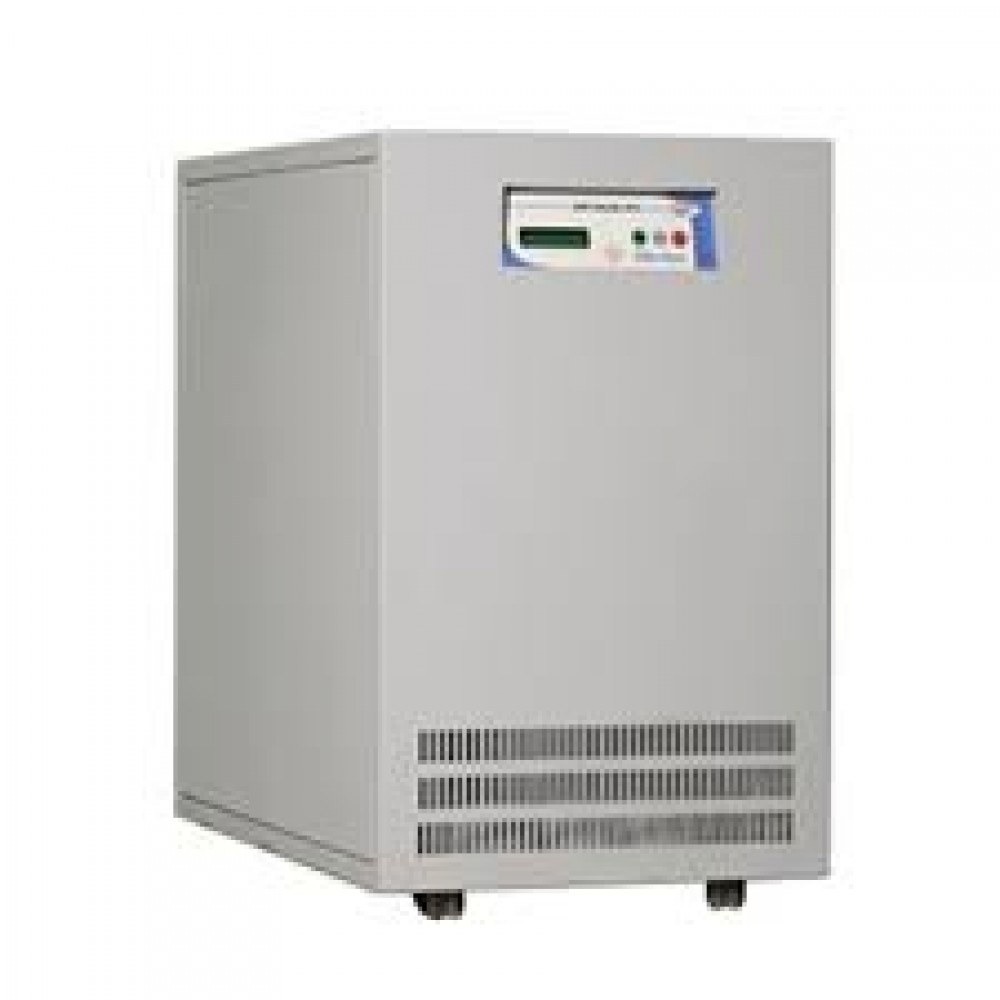

Specifications of Microtek 3In-3out Online Ups 10Kva
Model
Supermax-Series-I
Capacity
5KVA to 30KVA
Technology
Double Conversion high Freq. Switching PWM, using IGBT's
Input Voltage
360V AC~450V AC ± 5V AC, Three Phase
Frequency
45~55Hz
Phase
Three Phase Three Wire (compatible for phase reversal)
Generator Compatibility
Present
Output Voltage
400V AC Phase to Phase ± 3% on 100% unbalance load
Frequency Range
50Hz ± 0.5%
Phase
Three Phase Four Wire
THD (Liner Load)
<3%
THD (Non-Liner Load)
<5%
Overload Capability
125% for 2minuted / 150% for 30Seconds
Crest Factor
3:1 (max)
Shot Circuit Protection
Instant
Waveform
Pure Sine Wave
Static Bypass (optional)
? 10ms
Inverter Efficiency
? 90% on rated full load
Overall Efficiency
? 80%
DC Voltage
360V DC
Mimic Control Panel
LED for UPS status and LCD for Voltage, Current & Frequency
Audible Alarm
For Battery Low / DC High / Output High
Noise Level
? 50dB
Transient Response
For 100% step load charge, ± 5% and recovers to normal within 20 miliseconds.
Ambient Temperature / Relative Humidity
0-45° C / 0-95% Non-Condensing
Cooling
Forced Aircooled
