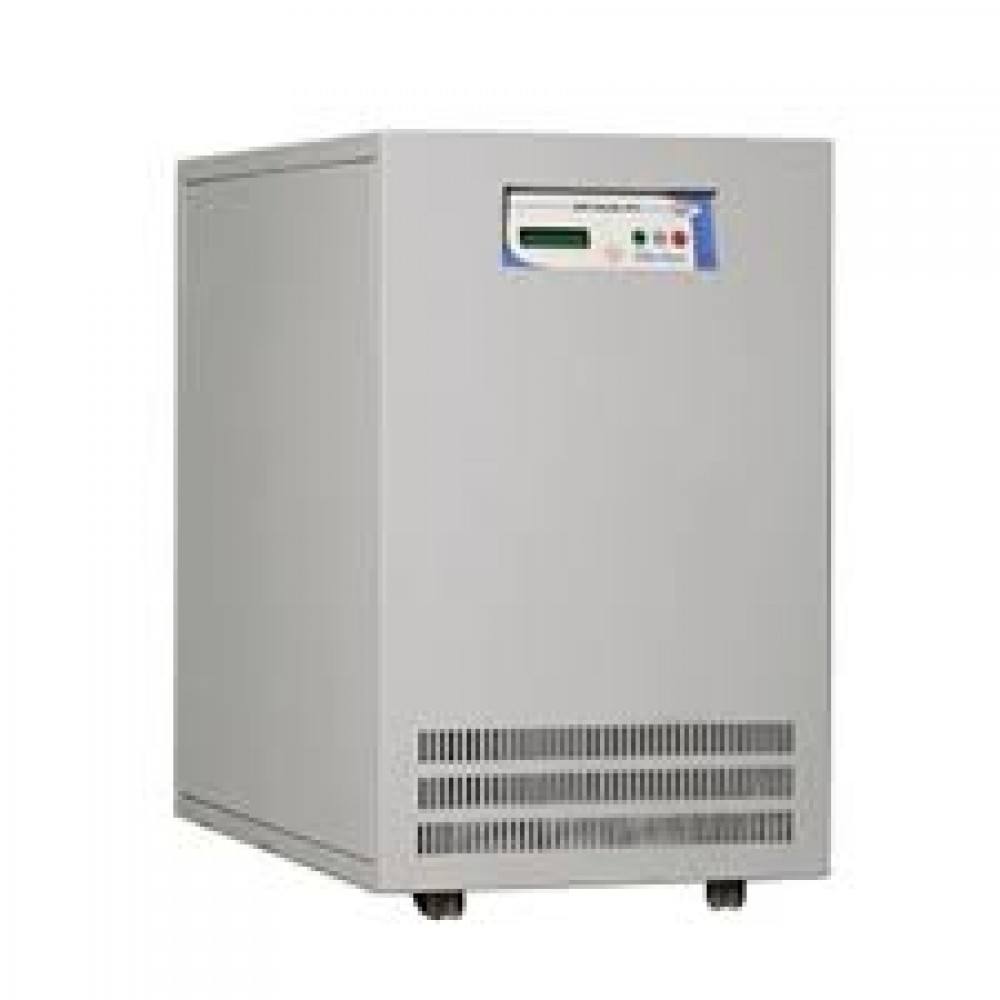

      Specifications of Microtek 3In-1out Online Ups 25Kva
 Model
                     Supermax-Series - I
                     Capacity
                     5KVA to 30KVA
                     Technology
                     Double Conversion high Freq. Switching PWM, using IGBT's
                     Input Voltage
                     160V AC~270V AC ±5V AC, Single Phase for upto 10KVA and 360V AC~450V AC ±5V AC, Three Phase for upto 30KVA
                     Frequency
                     45~55Hz
                     Phase
                     Single phase upto 10KVA and Three Phase from 5 to 30KVA
                     Generator Compatibility
                     Present
                     Output Voltage
                     230V Ac ±1%
                     Frequency Range
                     50Hz ± 0.5%
                     THD (Liner Load)
                     <3%
                     THD (Non-Liner Load)
                     <5%
                     Overload Capability

125% for 2minuted / 150% for 30Seconds
                     Crest Factor

3:1 (max)
                     Shot Circuit Protection

Instant
                     Waveform
                     Pure Sine Wave
                     Manual Bypass
                     Inbuilt upto 15KVA
                     Static Bypass (optional)
                     <5ms
                     Inverter Efficiency
                     ? 90% on rated full load
                     Overall Efficiency
                     ? 80%
                     DC Voltage
                     180 / 360 VDC
                     Mimic Control Panel
                     LED for UPS status and LCD for Voltage, Current & Frequency
                     Audible Alarm
                     For Battery Low / DC High / Output High / Overload
                     Noise Level
                     ? 50dB
                     Transient Response
                     For 100% step load charge, ± 5% and recovers to normal within 20 miliseconds.
                     Ambient Temperature / Relative Humidity

0-45° C / 0-95% Non-Condensing
                     Cooling
                     Forced Aircooled
