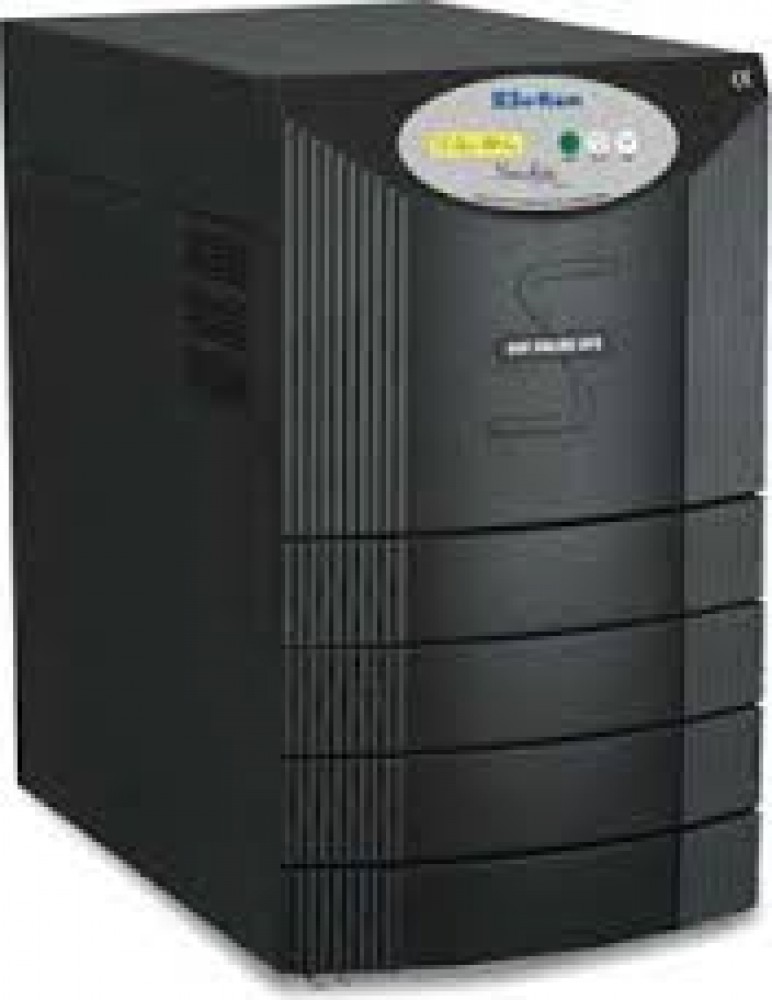

Specifications of Su-Kam 1In-1out Online Ups IQ113K 3KVA
Type
1 Phase Input - 1 Phase Output
Series
IntelliQ Online UPS
Technology
DSP based Double Conversion Online UPS system with true galvanic isolation
Ratings
3 KVA
Model
IQ113K
Capacity
3 KVA
No. of Phases
1Phase-3Wire P,N,E
Voltage Range
170 V - 280 Volts AC
Input Frequency Range
47 to 53Hz.
Power
2400 W
Load PF Range
0.8 lagging
Phase
1 Phase -2 Wire (P,N)
Output Waveform
Pure Sine Wave
Voltage
230 V +/-1%
Frequency
50Hz +/-0.1%
Load Crest Factor
> 3:1
Output Voltage THD
<=3% on Linear Load
Loading Capacity
110% for 2 Minutes
Maintenance By-Pass
Available
No. of 12V Batteries
15
Voltage
180 VDC
Battery Charging current
1 Amp to 10 Amp
Battery Recommendation
From 7.2 Ah to 200 Ah
Battery Self Test
Automatic & Manual
Communication port
RS-232 Server and Client
Operating System
Windows95/98/NT/2000/XP
Indication
LCD pannel
Alarm
Mains Failure, Battery Low, Over Load Short Circuit
Protection
Short Circuit , Over Voltage & Under Voltage Protection.
Cooling
Forced Air Cooling
UPS Efficiency
> 85%
Operating Temperature
0-45DegC
Operating Humidity
95% Condensing
Monitoring Software
Additional Software available for remote monitoring
Accoustic Noise
<45 Db at 1 meter
Protection Class
Ip20
UPS Weight
57.5Kg (Without Batteries)
Dimension (L X W X H)
(475 X 350 X 610)MM
