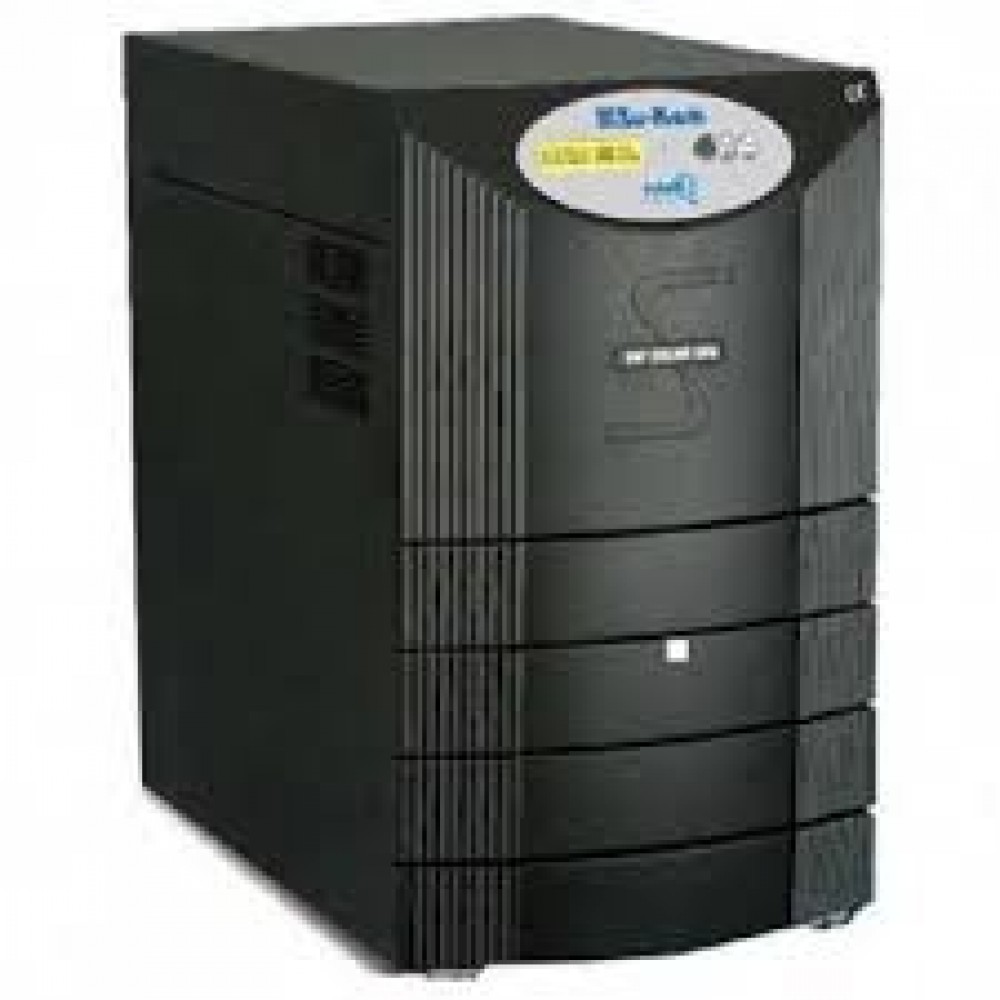

Specifications of Su-Kam 3In-1out Online Ups IQ3120K 20KVA
Type
3 Phase Input – 1 Phase Output
Series
IntelliQ Online UPS
Technology
DSP based Double Conversion Online UPS with true Galvanic Isolation
Ratings
20 KVA
Model
IQ3120K
Capacity
20 KVA
No. of Phases
3 Phase- 4 Wire
Voltage Range
310 V – 480 Volt AC
Input Frequency Range
45 - 55 Hz
Power
16000W
Load PF Range
0.8 lagging
Phase
1 Phase -2 Wire (P,N)
Output Waveform
Pure Sine Wave
Voltage
230V ± 1%
Frequency
50Hz +/-0.1%
Load Crest Factor
> 3:1
Output Voltage THD
<=3% on Linear Load
Loading Capacity
110% for 5 Minutes/ 125% for 1 Min/ 150% for 10 Sec
Capacity
125% continues
Maintenance By-Pass
Available
No. of 12V Batteries
30
Voltage
360 V DC
Battery Charging current
0.8 Amp to 8 Amp
Battery Recommendation
From 7.2 Ah to 200 Ah
Battery Self Test
Automatic & Manual
Communication port
RS-232 Server and Client
Operating System
Windows95/98/NT/2000/XP
Indication
LCD pannel
Alarm
Mains Failure, Battery Low, Over Load Short Circuit
Protection
Short Circuit , Over Voltage & Under Voltage Protection.
Cooling
Forced Air Cooling
UPS Efficiency
> 90%
Operating Temperature
0-45DegC
Operating Humidity
95% Condensing
Monitoring Software
Additional Software available for remote monitoring
Accoustic Noise
<45 Db at 1 meter
Protection Class
Ip20
UPS Weight
170 Kg (without Batteries)
Dimension (L X W X H)
450MM X 700MM X 730MM
