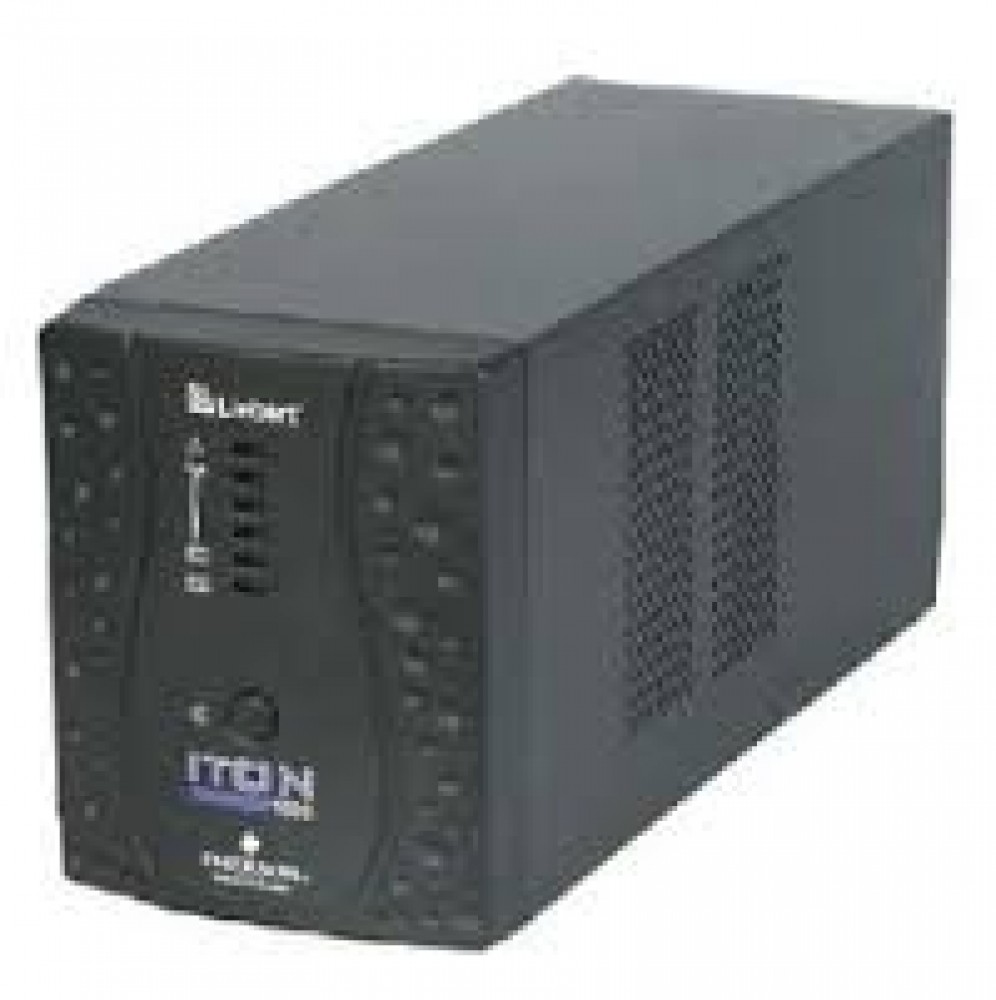

Specifications of Emerson Liebert ITON 1000 LB 10/20A
Capacity
1000 / 600 W
Input voltage range
140-300 VAC
Input frequency
50Hz
Nominal RMS current
4.3 AMP
Output Voltage
230 VAC
Buck
Input x 0.875
Frequency
50 Hz
Frequency regulation
1%
Output Waveform
Simulated Sine wave
Overload
110% + 20% I - 10%; shut down after 5 min
120% + 20% I - 10%; shut down immediately
Overload on Battery mode
120% + 20% / - 10%; shut down immediately
On line mode
> 94%
Boost / Buck mode
>88%
Battery mode (SPS Load)
25% to 50% SPS Load
Battery type
12V / 7AH x 2 in series (Internally)
12V / 7AH x 2 in parallel (External Provision)
Backup time Chart
Load :1 PC + 15' CRT monitor typical 120 Watt.
120 W SPS LOAD : 1.5 Hrs
240 W SPS LOAD : 45 Min
360 W SPS LOAD : 15 Min
600 W SPS LOAD : 4 Min
Charger voltage
27.4 + 1- 0.5 V @ normal load
Charger current
1.2 Amp @ normal load
Recharge time
4 — 6 Hrs typical
Transfer Time
Typical 4-8 msec
To AC Mode
Green
Backup
Yellow Flash
Fault
Red
To Battery Mode
Sounding every 10 sec
Low Battery
Sounding every sec
Overload
Sounding every 0.5 sec
Battery Replacements
Sounding every 2 sec
Fault
Continuously sounding
PHYSICAL Dimension, DXW X H (mm)
369 x 141 x 160
Physical Net Weight (kgs)
13.5
Operating Temperature
0-40 C
Humidity
0 to 90 % non condensing
Storage Temperature
-20 to 50 C
Audible noise
40 dBA max
