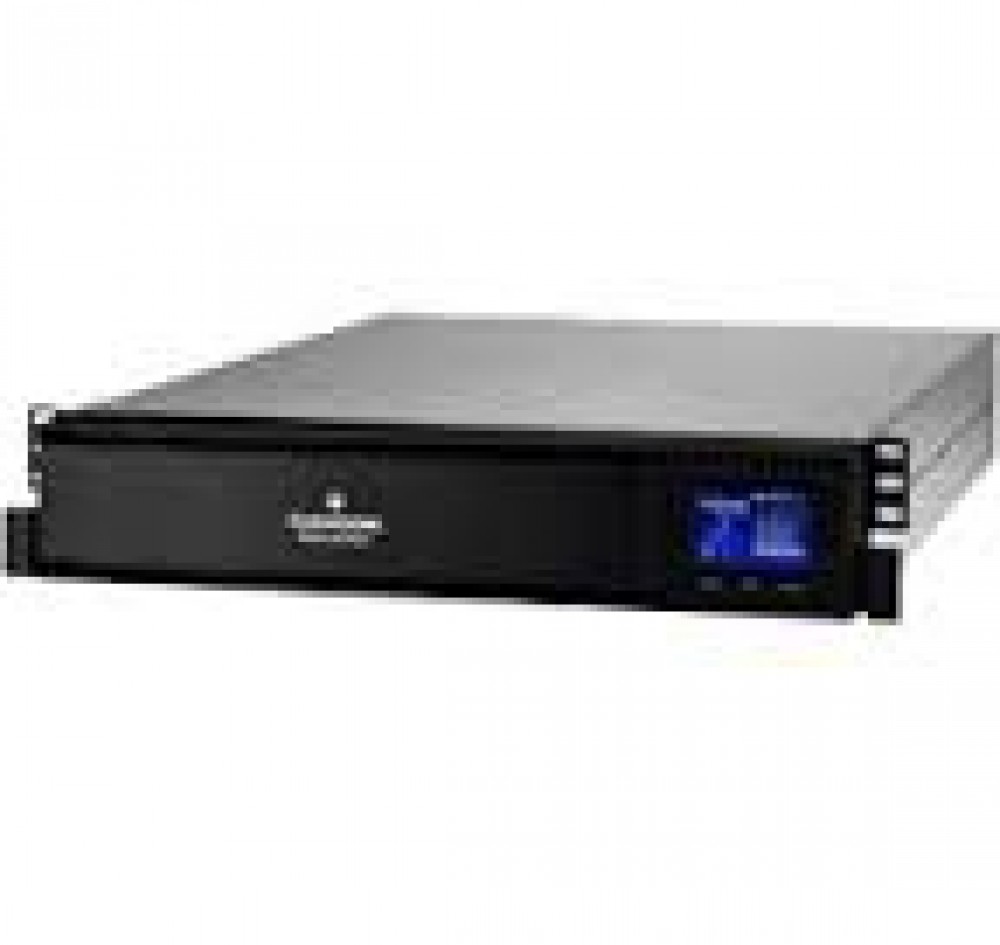

Specifications of Emerson Liebert GXT RT+ 2 KVA Long Backup
Capacity
2 kVA / 1600 W
Power Factor
0.8
Waveform
Pure sine wave (On line double conversion)
Nominal Voltage
230 V
V thd
2% max Full linear load, 5% max on Non linear load
Frequency regulation
+ / - 0.5%
Frequency
50 Hz
Crest Factor
3:01
AC-AC Efficiency
90%
Transfer time Mains-Battery
0
Transfer time Inverter - Bypass
4 msec
Configuration
1 Ph, L-N +PE
Nominal Voltage
230 V rms
Voltage Range
170 V to 290 Vat 100% load, 100 V to 290 V at 60% Load
Frequency
50 Hz / 60 Hz
Frequency Range
40 to 70 Hz, + / _ 0.2 Hz
PF
>=0.99
Nominal Voltage Float (SB)
54.7
Nominal Voltage Float (LB)
54.7
Max charging current
1 Amp to Standard model / 8 Amp for long run model
Type
SMF
No of battery blocks (SB)
12V/9 AH (4 Battery Block)
Battery Voltage (LB)
12V/9 AH (8 Battery Block)
Operating Temperature
0 to 40 deg
Storage Temperature
- 20 to 50 deg
Humidity
20% to 90% non condensing
Noise Level
50 dBA max
Product size (DxWxH)
480x438x88 [2U]
Weight (SB / LB)
20.6 kg / 11.3 kg
Color
RAL7001
Protection
IP 20
Communication port
RS232, USB
EPO
Yes
Monitoring Software
SNMP, UPSlion 2000, View power 2.0
EMI
EN 62040-2 : 2006
SAFETY
EN 62040-1-1 : 2003
PERFORMANCE
IEC / EN 62040 - 3
