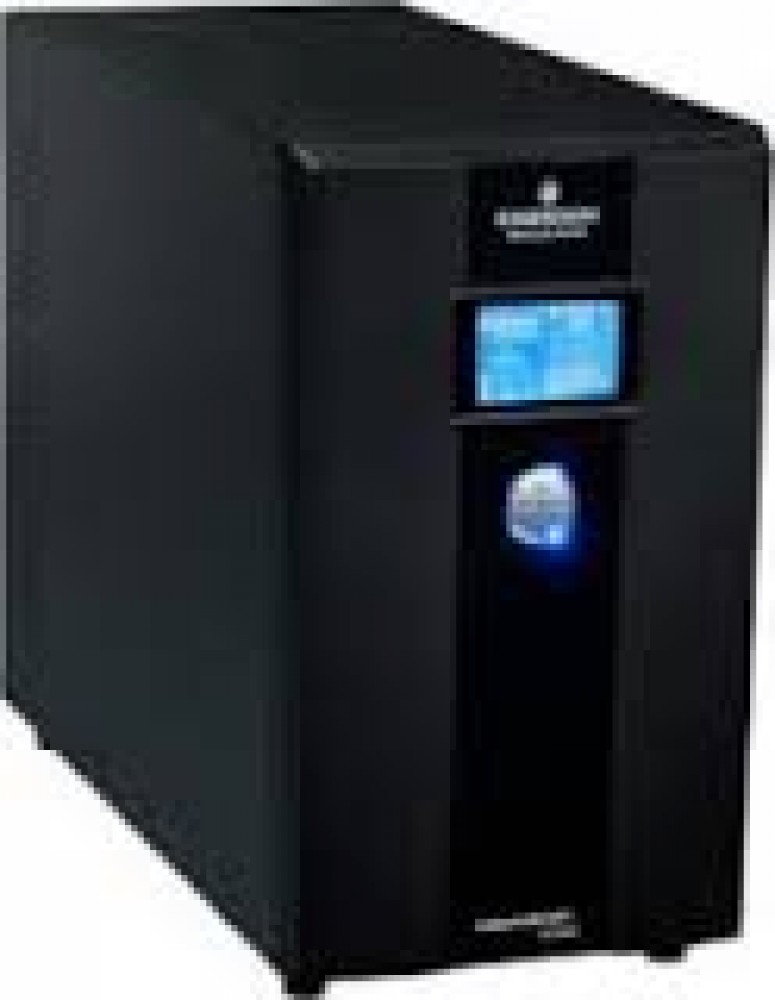

Specifications of Emerson Liebert GXT MT+ CX 1 KVA Inbuilt Battery
Model
GXT MT+ CX
Phase
Single phase with ground
Capacity
1000 VA / 800 W
Nominal Voltage
200/208/220/230/240VAC
Input voltage range
110-280 VAC (Based on load at 50%)
Frequency Range
40Hz — 70 Hz
Power Factor
0.99 @ Nominal Voltage (100% load)
Output Voltage
200/208/220/230/240VAC
Voltage Regulation
± 1%
Frequency Range (Synchronized Range)
47— 53 Hz or 57 — 63 Hz
Frequency Range (Batt. Mode)
50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio
3:1
Harmonic Distortion
< 3 % THD (Linear Load)
Transfer Time AC to DC
Zero
Transfer time Inverter - Bypass
4 ms (Typical)
Waveform (Batt. Mode)
Pure Sinewave
To AC Mode
88%
To Battery Mode
83%
Battery type
12V/ 9AH
Numbers
2
Charging Current (max.)
1.0 A
Battery type
Depending on the capacity of external batteries
Numbers
3
Long-run Model Charging Current (max.)
1.0A/2.0A/4.0A/6.0 A, 6.0A default
Charging Voltage
27.4VDC ± 1%
Long-run Model Charging Voltage
41.0VDC ± 1%
INDICATORS LCD
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
To Battery Mode
Sounding every 4 seconds
Low Battery
Sounding every second
Overload
Sounding twice every second
Fault
Continously sounding
Standard Model Dimension DxWxH (mm)
282 x 145 x 220
Standard Model Net Weight (kgs)
9.8
Long-run Model Dimension, DxWx H (mm)
282 x 145 x 220
Long-run Model Net Weight (kgs)
4.1
Humidity
20-90 % RH @ 0- 40°C (non-condensing)
Noise Level
Less than 50dBA @ 1 Meter
Smart RS-232/USB
Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP
Power management from SNMP manager and web browser
