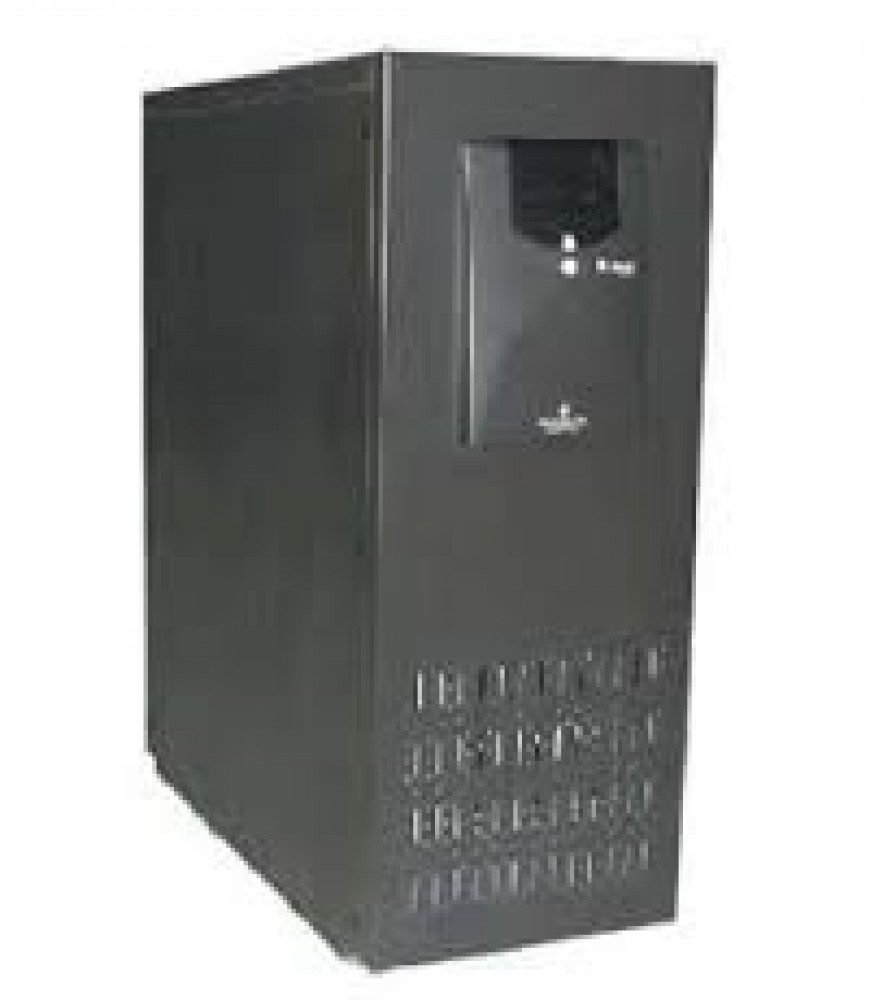

Specifications of Emerson Liebert GXT MT+ 6 KVA UPS System
Rectier Type
IGBT Rectifier
Rated Voltage
220/380Vac single-phase three-wire/ three-phase four wire
Input voltage range
Single-phase 120Vac-276Vac /
Three-phase 228Vac-478Vac
Input Power Factor
0.95 for Three Phase / >=0.99 for single Phase
Battery type
Lead Acid Maintenance Free
Charging Capability
<3 Hr of recharging of Standard Model
No of Battery
16 Nos of Battery
Rated Power (kVA/kW)
6kVA/4.8kW
Rated Voltage
Single Phase 230 /220 Vac
Voltage Precision
3%
Frequency Precision
0.25%
Output Voltage THD
<3% for Linear Load and <5% for Non Linear Load
Load Crest Factor
3:1 Comply with IEC 62040-3
Step Load Performance
100%
Output Mode
Terminal Strip
Overload Performance (% of Rated Load)
105%-125%; lmin
Conversion Type
Online Double Conversion
Parallel Mode
3+1
Installation Mode
Rack/Tower Convertible
System Efficiency @100%
Up to 91%
Noise (dB)
<50dB
LCD Display
Yes (Optional)
SAFETY
IEC/EN62040-1-1
Electromagnetic Compatibility
IEC/EN62040-1-2, IEC/EN61000-3-11, IEC/EN61000-3-12, YD/T1095-2008
Surge Protection
IEC/EN62040-2, meeting IEC/EN61000-4-5
Protection Level
IP 20
Dimension (mm)
430x625x85
Net Weight (kg)
17.8
Interface Type
USB/Intelligent Slot (Dry Contact Card/ Modbus Card/ RS 485 Card
Management Software
Site Monitor
Operating Temperature
0 - 40°C
Relative Humidity
5-95% without Condensation
Max Altitude
<1500m(when the altitude exceeds 1500m,
derating is required according to GB/T3859.2)
