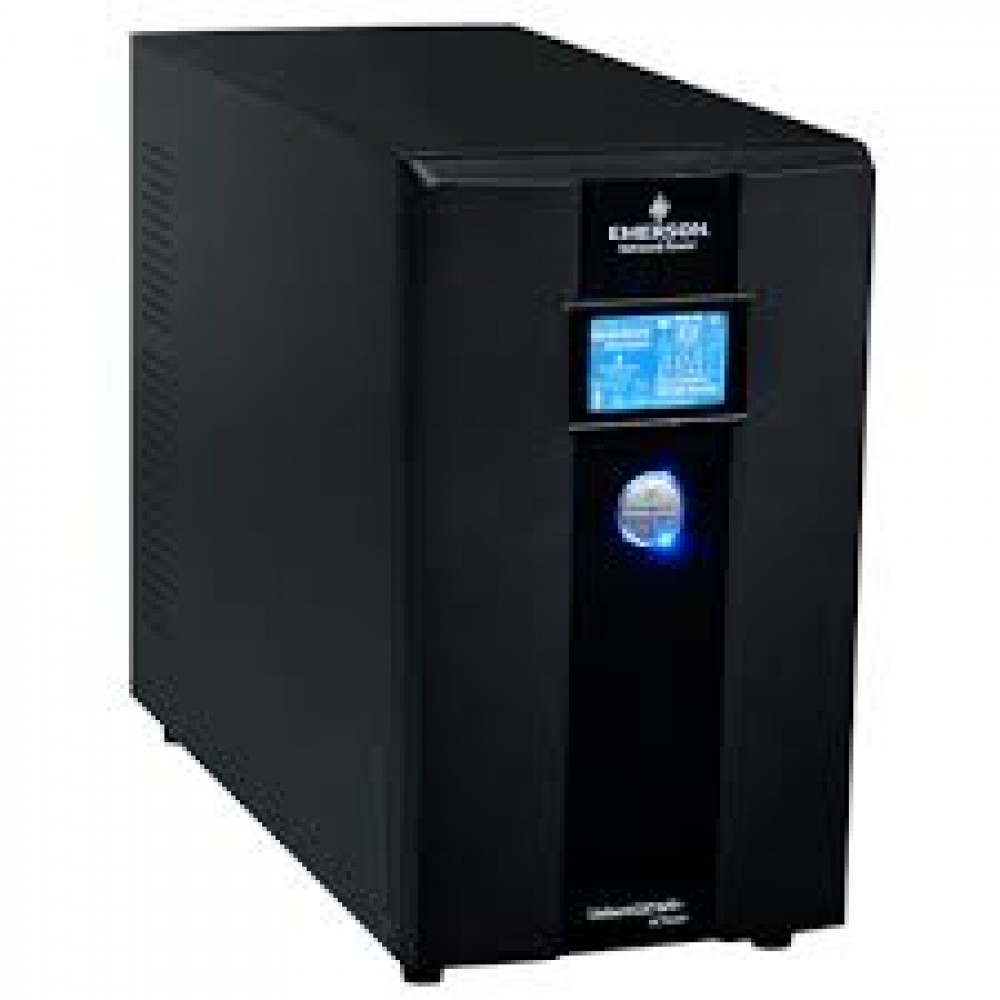

      Specifications of Emerson Liebert GXT MT+ 1 KVA Long Backup
 Model
                     GXT MT+ CX 1 KVA
                     Phase
                     Single phase with ground
                     Capacity
                     1000 VA / 800 W
                     Nominal Voltage
                     200/208/220/230/240VAC
                     Input voltage range
                     110-280 VAC (Based on load at 50%)
                     Frequency Range
                     40Hz — 70 Hz
                     Power Factor
                     0.99 @ Nominal Voltage (100% load)
                     Output Voltage
                     200/208/220/230/240VAC
                     Voltage Regulation
                     ± 1%
                     Frequency Range (Synchronized Range)
                     47— 53 Hz or 57 — 63 Hz
                     Frequency Range (Batt. Mode)
                     50 Hz or 60Hz ± 0.1 Hz
                     Current Crest Ratio
                     3:1
                     Harmonic Distortion
                     < 3 % THD (Linear Load)
                     Transfer Time AC to DC
                     Zero
                     Transfer time Inverter - Bypass
                     4 ms (Typical)
                     Waveform (Batt. Mode)
                     Pure Sinewave
                     To AC Mode
                     88%
                     To Battery Mode
                     83%
                     Battery type
                     12V/ 9AH
                     Numbers
                     2
                     Typical Recharge Time
                     4 hours recover to 90% capacity
                     Charging Current (max.)
                     1.0 A
                     Charging Voltage
                     27.4VDC ± 1%
                     Battery type
                     Depending on the capacity of external batteries
                     Long-run Model Numbers
                     3
                     Long-run Model Charging Current (max.)
                     1.0A/2.0A/4.0A/6.0 A, 6.0A default
                     Long-run Model Charging Voltage
                     41.0VDC ± 1%
                     INDICATORS LCD
                     Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
                     To Battery Mode
                     Sounding every 4 seconds
                     Low Battery
                     Sounding every second
                     Overload
                     Sounding twice every second
                     Fault
                     Continously sounding
                     Standard Model	Dimension DxWxH (mm)
                     282 x 145 x 220
                     Standard Model Net Weight (kgs)
                     9.8
                     Long-run  Model Dimension, DxWx H (mm)
                     282 x 145 x 220
                     Long-run Model Net Weight (kgs)
                     4.1
                     Humidity
                     20-90 % RH @ 0- 40°C (non-condensing)
                     Noise Level
                     Less than 50dBA @ 1 Meter
                     Smart RS-232/USB
                     Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
                     Optional SNMP
                     Power management from SNMP manager and web browser
