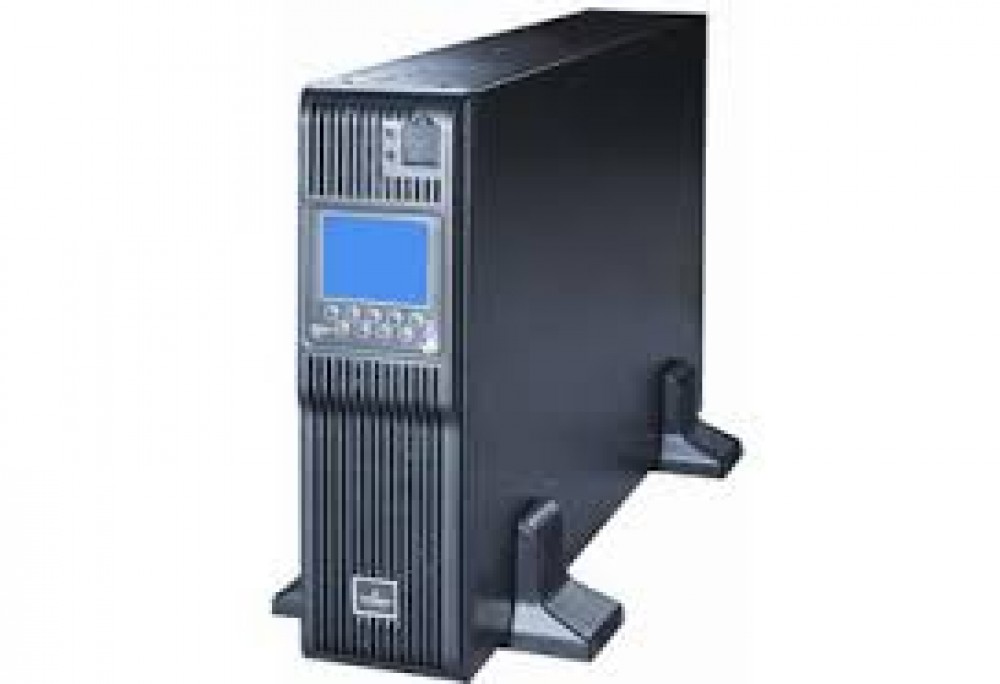

      Specifications of Emerson Liebert 3 In-1 Out ITA 6 KVA
 Rectier Type
                     IGBT Rectifier
                     Rated Voltage
                     220/380Vac single-phase three-wire/ three-phase four wire
                     Input voltage range
                     Single-phase 120Vac-276Vac /
Three-phase 228Vac-478Vac

                     Input Frequency Range
                     45 Hz - 55 Hz
                     Input Power Factor
                     0.95 for Three Phase / >=0.99 for single Phase
                     Battery type
                     Lead Acid Maintenance Free
                     Charging Capability
                     <3 Hr of recharging of Standard Model
                     No of Battery
                     16 Nos of Battery
                     Rated Power (kVA/kW)
                     6kVA/4.8kW
                     Rated Voltage
                     Single Phase 230 /220 Vac
                     Voltage Precision
                     3%
                     Frequency Precision
                     0.25%
                     Output Voltage THD
                     <3% for Linear Load and <5% for Non Linear Load
                     Load Crest Factor
                     3:1 Comply with IEC 62040-3
                     Step Load Performance
                     100%
                     Output Mode
                     Terminal Strip
                     Overload Performance (% of Rated Load)
                     105%-125%; lmin
                     Conversion Type
                     Online Double Conversion
                     Parallel Mode
                     3+1
                     Installation Mode
                     Rack/Tower Convertible
                     System Efficiency @100%
                     Up to 91%
                     Noise (dB)
                     <50dB
                     LCD Display
                     Yes (Optional)
                     SAFETY
                     IEC/EN62040-1-1
                     Electromagnetic Compatibility
                     IEC/EN62040-1-2, IEC/EN61000-3-11, IEC/EN61000-3-12, YD/T1095-2008
                     Surge Protection
                     IEC/EN62040-2, meeting IEC/EN61000-4-5
                     Protection Level
                     IP 20
                     Dimension (mm)
                     430x625x85
                     Net Weight (kg)
                     17.8
                     Interface Type
                     USB/Intelligent Slot (Dry Contact Card/ Modbus Card/ RS 485 Card
                     Management Software
                     Site Monitor
                     Operating Temperature
                     0 - 40°C
                     Relative Humidity
                     5-95% without Condensation
                     Max Altitude
                     <1500m(when the altitude exceeds 1500m,
derating is required according to GB/T3859.2)
