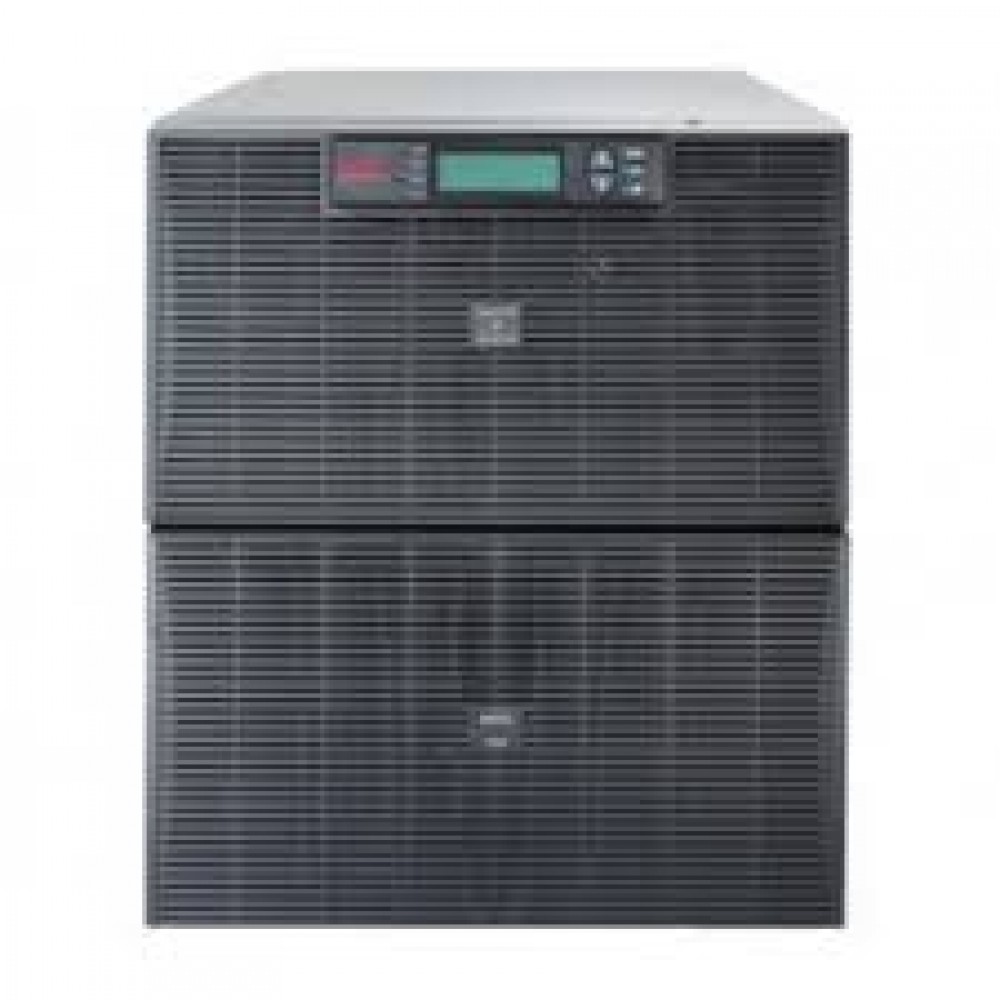

Specifications of Apc Online Ups SURT15KUXI
Output power capacity
12.0 KWatts / 15.0 kVA
Max Configurable Power (Watts)
12.0 KWatts / 15.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 400 or 415V 3 Phase nominal output voltage
Efficiency at Full Load
94.0 %
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240, 400, 415
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(1) Hard Wire 5-wire (3PH + N + G) (Battery Backup)
Bypass
External Static Bypass, Internal Bypass (Automatic and Manual), Optional External Bypass
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
160 - 280 V
Efficiency at Full Load
94.0 %
Input Total Harmonic Distortion
Less than 5% for full load
Other Input Voltages
220, 240, 400, 415
Maximum Input Current
90.0 A
Input Power Factor at Full Load
0.98
Battery type
No internal battery - uses external battery system
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-RT-15kVA-230V-No-Batteries-Including-Start-Up
Interface Port(s)
DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
263 , 26.3 cm
Maximum Width
432 , 43.2 cm
Maximum Depth
773 , 77.3 cm
Rack Height
6 U
Net Weight
68.0 kg
Shipping weight
90.5 kg
Shipping Height
622 , 62.2 cm
Shipping Width
610 , 61.0 cm
Shipping Depth
1003 , 100.3 cm
Color
Black
Units per Pallet
1.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95% no %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95% no %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
50.0 dBA
Online thermal dissipation
2216.0 BTU/hr
Protection Class
IP 20
Approvals
EN/IEC 62040-2, EN/IEC 62040-1-1
Standard warranty
2 years repair or replace
