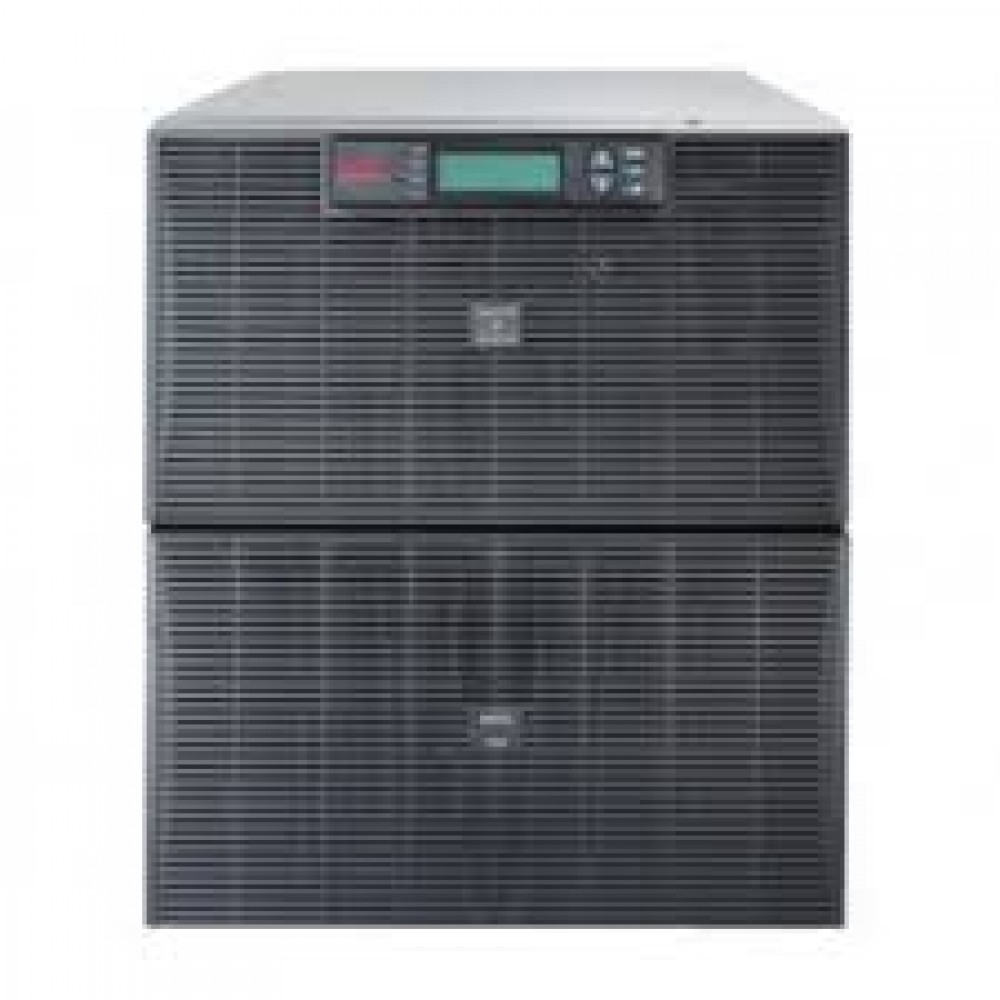

Specifications of Apc Online Ups SURT 20KUXI
Output power capacity
16.0 KWatts / 20.0 kVA
Max Configurable Power (Watts)
16.0 KWatts / 20.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 400 or 415V 3 Phase nominal output voltage
Efficiency at Full Load
94.0 %
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240, 400, 415
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(4) IEC 320 C19 (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
160 - 280 V
Efficiency at Full Load
94.0 %
Other Input Voltages
220, 240, 400, 415
Maximum Input Current
115.0 A
Input Power Factor at Full Load
0.95
Battery type
No internal battery - uses external battery system
RBC Quantity
2
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-RT-20kVA-230V-No-Batteries-Including-Start-Up
Interface Port(s)
DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
263 , 26.3 cm
Maximum Width
432 , 43.2 cm
Maximum Depth
773 , 77.3 cm
Rack Height
6 U
Net Weight
68.0 kg
Shipping weight
90.5 kg
Shipping Height
622 , 62.2 cm
Shipping Width
610 , 61.0 cm
Shipping Depth
1003 , 100.3 cm
Color
Black
Units per Pallet
1.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95% no %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95% no %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
59.0 dBA
Online thermal dissipation
2216.0 BTU/hr
Protection Class
IP 20
Approvals
EN/IEC 62040-2, EN/IEC 62040-1-1
Standard warranty
2 years repair or replace
