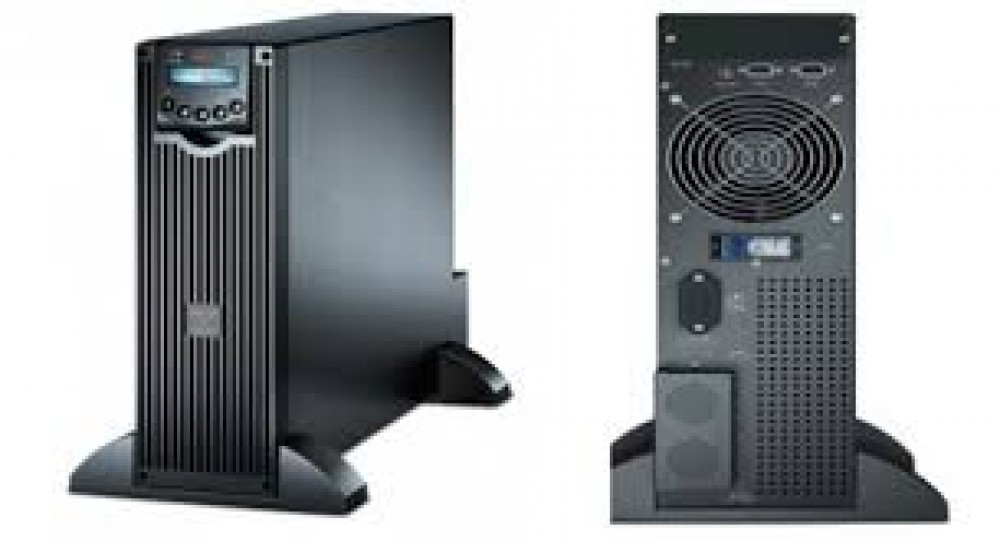

Specifications of Apc Online Ups SRC6KUXI
Output power capacity
5.4 KWatts / 6.0 kVA
Max Configurable Power (Watts)
5.4 KWatts / 6.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5%
Other Output Voltages
220, 240
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
Bypass
Built-in Static Bypass
Nominal Input Voltage
230V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3-wire
Input voltage range for main operations
160 - 285 V
Battery type
No internal battery - uses external battery system
Efficiency
View Efficiency Graph
Surge energy rating
480 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
432 , 43.2 cm
Maximum Width
135 , 13.5 cm
Maximum Depth
706 , 70.6 cm
Net Weight
18.75 kg
Shipping weight
23.5 kg
Shipping Height
570 , 57.0 cm
Shipping Width
275 , 27.5 cm
Shipping Depth
790 , 79.0 cm
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-900 meters
Audible noise at 1 meter from surface of unit
55.0 dBA
Standard warranty
2 years repair or replace
