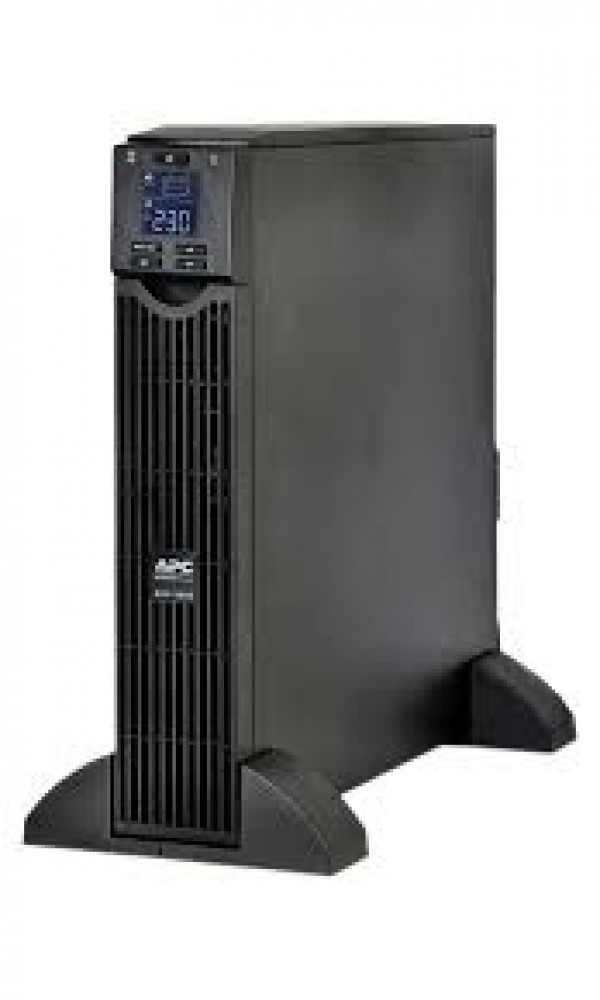

Specifications of APC ONLINE UPS SRC2KUXI
Output power capacity
1.6 KWatts / 2.0 kVA
Max Configurable Power (Watts)
1.6 KWatts / 2.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92.0 %
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(2) IEC 320 C13 (Battery Backup)
Output Voltage THD
< 3% linear load
Transfer Time
4ms typical
Bypass
Built-in Bypass
Nominal Input Voltage
230V
Input frequency
40 - 70 Hz
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
140 - 280 V
Number of Power Cords
1
Efficiency at Full Load
92.0 %
Battery type
No internal battery - uses external battery system
Replacement battery cartridge note
72V, SMF or Flooded battery compatible, internal charger 2A - 13A programmable
Extendable Run Time
1
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
85 , 8.5 cm
Maximum Width
432 , 43.2 cm
Maximum Depth
483 , 48.3 cm
Net Weight
10.5 kg
Shipping Height
265 , 26.5 cm
Standard warranty
2 years repair or replace
