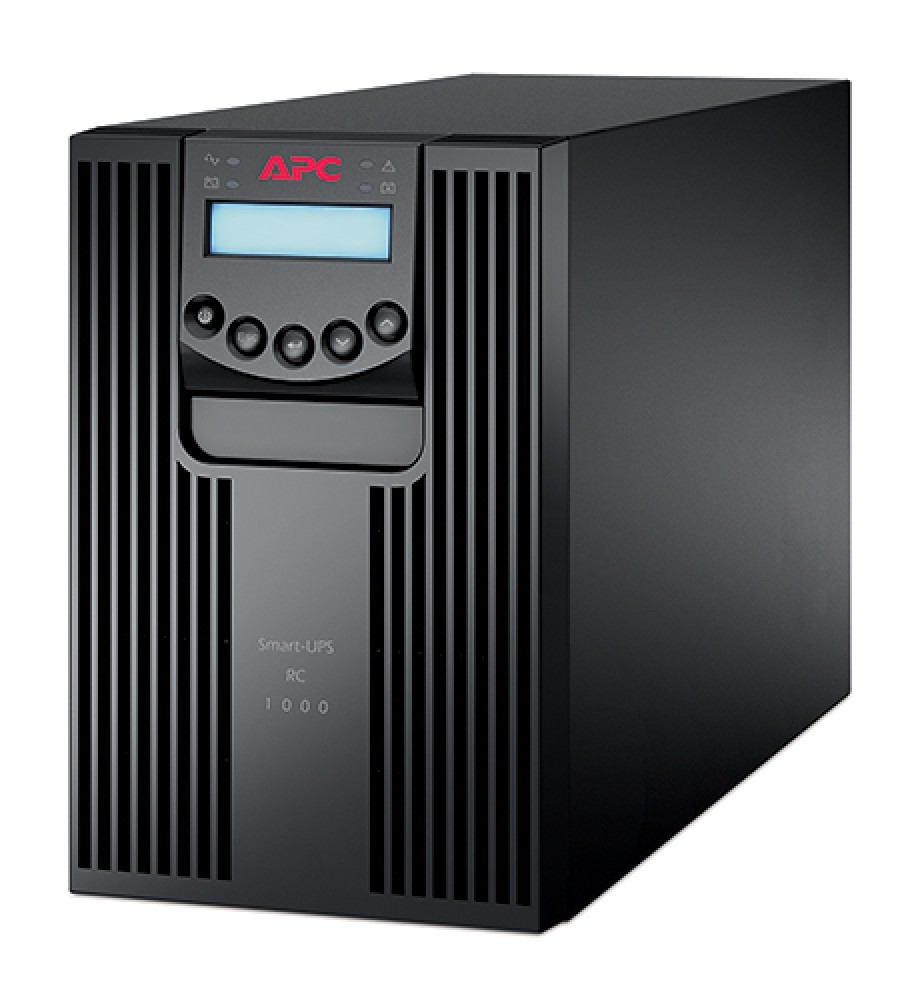

Specifications of APC ONLINE UPS SRC1000ICCIND
Output power capacity
800 Watts / 1.0 kVA
Max Configurable Power (Watts)
800 Watts / 1.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
88.0 %
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(4) IEC 320 C13 (Battery Backup)
Transfer Time
4ms typical
Bypass
Built-in Bypass
Output Voltage THD
< 3% linear load
Nominal Input Voltage
230V
Input frequency
47 - 63 Hz
Input Connections
IEC-320 C20
Cord Length
1.22 meters
Input voltage range for main operations
160 - 280 V
Input voltage adjustable range for mains operation
100 - 280 V
Number of Power Cords
1
Efficiency at Full Load
88.0 %
Other Output Voltages
220, 240
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Battery Slots Empty
1
Battery Volt-Amp-Hour Capacity
259
Runtime
View Runtime Graph
Interface Port(s)
DB-9 RS-232 , SmartSlot
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlotâ„¢ Interface Quantity
1
Surge energy rating
420 Joules
Data Line Protection
RJ-45 Modem/Fax protection (four wire dual line)
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Width
166 , 16.6 cm
Maximum Depth
420 , 42.0 cm
Rack Height
4 U
Net Weight
14.82 kg
Shipping weight
16.62 kg
Shipping Depth
556 , 55.6 cm
Color
Black
Units per Pallet
12.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
50.0 dBA
Online thermal dissipation
652.0 BTU/hr
Approvals
EN 60950, EN/IEC 60950-1, EN/IEC 62040-1, EN/IEC 62040-2
Standard warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
