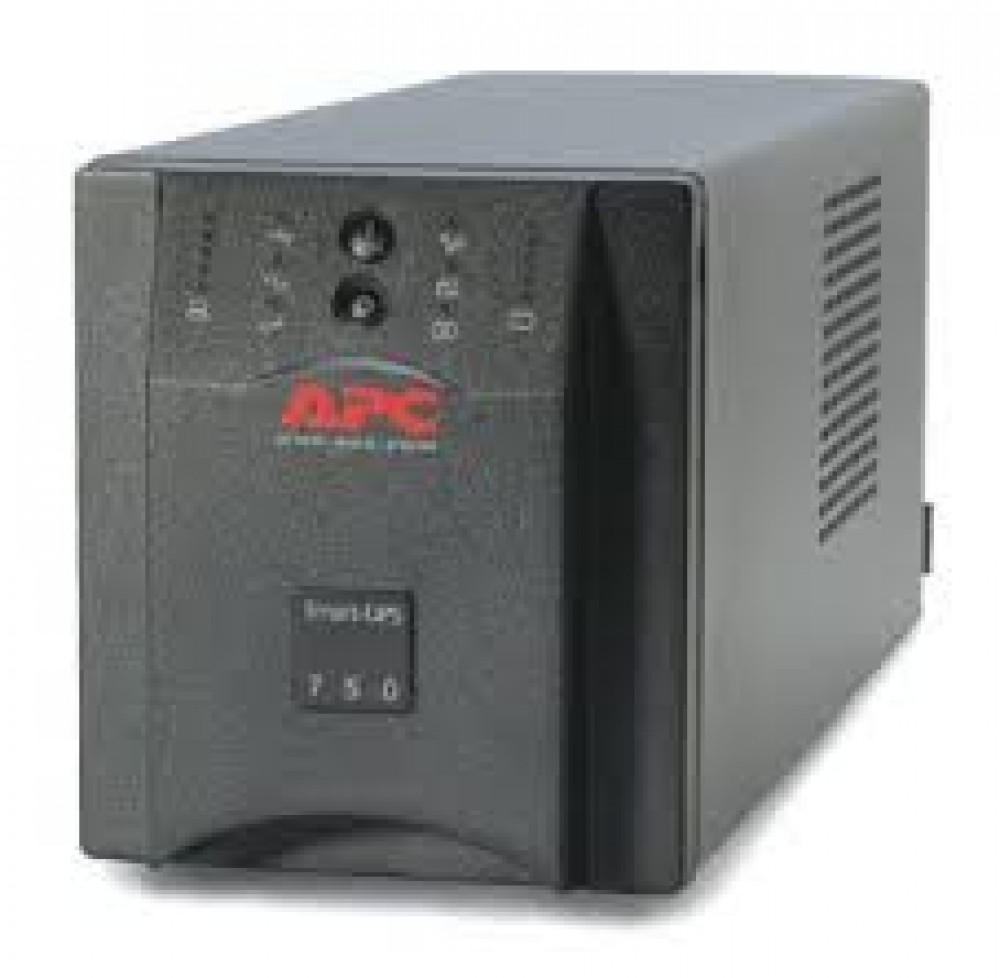

Specifications of APC SUA750I Offline UPS 750VA
Output power capacity
500 Watts / 750 VA
Max Configurable Power (Watts)
500 Watts / 750 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(6) IEC 320 C13 (Battery Backup)
Transfer Time
2ms typical
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 285 V
Input voltage adjustable range for mains operation
151 - 302 V
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Efficiency
View Efficiency Graph
Interface Port(s)
DB-9 RS-232 , SmartSlot , USB
Maximum Height
157 , 15.7 cm
Maximum Width
137 , 13.7 cm
Maximum Depth
361 , 36.1 cm
Net Weight
13.18 kg
Shipping weight
14.55 kg
Shipping Height
290 , 29.0 cm
Shipping Width
270 , 27.0 cm
Shipping Depth
500 , 50.0 cm
Units per Pallet
24.0
RoHS
Compliant
REACH
REACH: Contains No SVHCs
