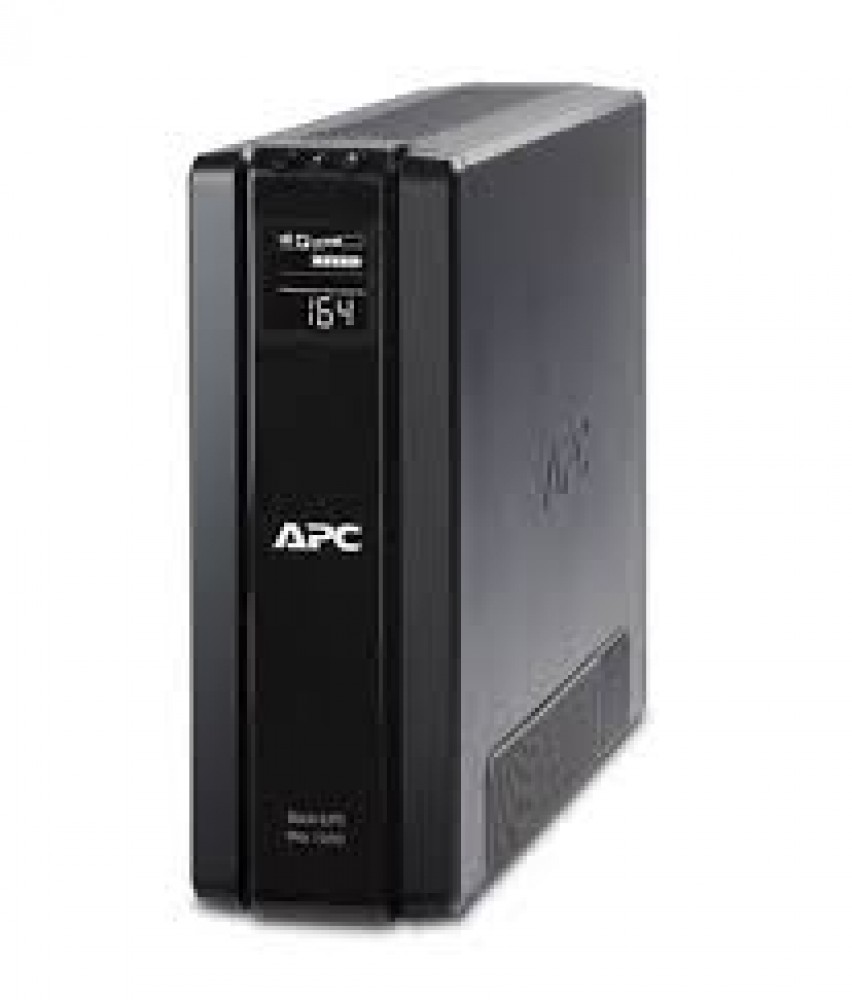

Specifications of APC BR1500G-IN Offline UPS 1500VA
Output power capacity
865 Watts / 1.5 kVA
Max Configurable Power (Watts)
865 Watts / 1.5 kVA
Nominal Output Voltage
230V
Efficiency at Full Load
85.0 %
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(2) India 3-pin 6A (selector_surgetitle)
(4) India 3-pin 6A (Battery Backup)
Transfer Time
6ms typical : 10ms maximum
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
India 3-pin 16A
Cord Length
1.52 meters
Input voltage range for main operations
160 - 280 V
Number of Power Cords
1
Efficiency at Full Load
85.0 %
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time
7.2 hour(s)
Replacement battery cartridge note
9Ah x 2 internal batteries
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
216
Extended Run Options
APC-Power-Saving-Back-UPS-Pro-1500-230V-India
Runtime
View Runtime Graph
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rating
680 Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
Maximum Height
301 , 30.1 cm
Maximum Width
114 , 11.4 cm
Maximum Depth
382 , 38.2 cm
Net Weight
11.76 kg
Shipping weight
13.19 kg
Shipping Height
381 , 38.1 cm
Shipping Width
229 , 22.9 cm
Shipping Depth
483 , 48.3 cm
Color
Black
Master Carton Units
2.0
Master Carton Weight
28.14
SCC Codes
1073130426879 3
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
45.0 dBA
Standard warranty
2 years repair or replace
RoHS
Compliant
REACH
REACH: Contains No SVHCs
