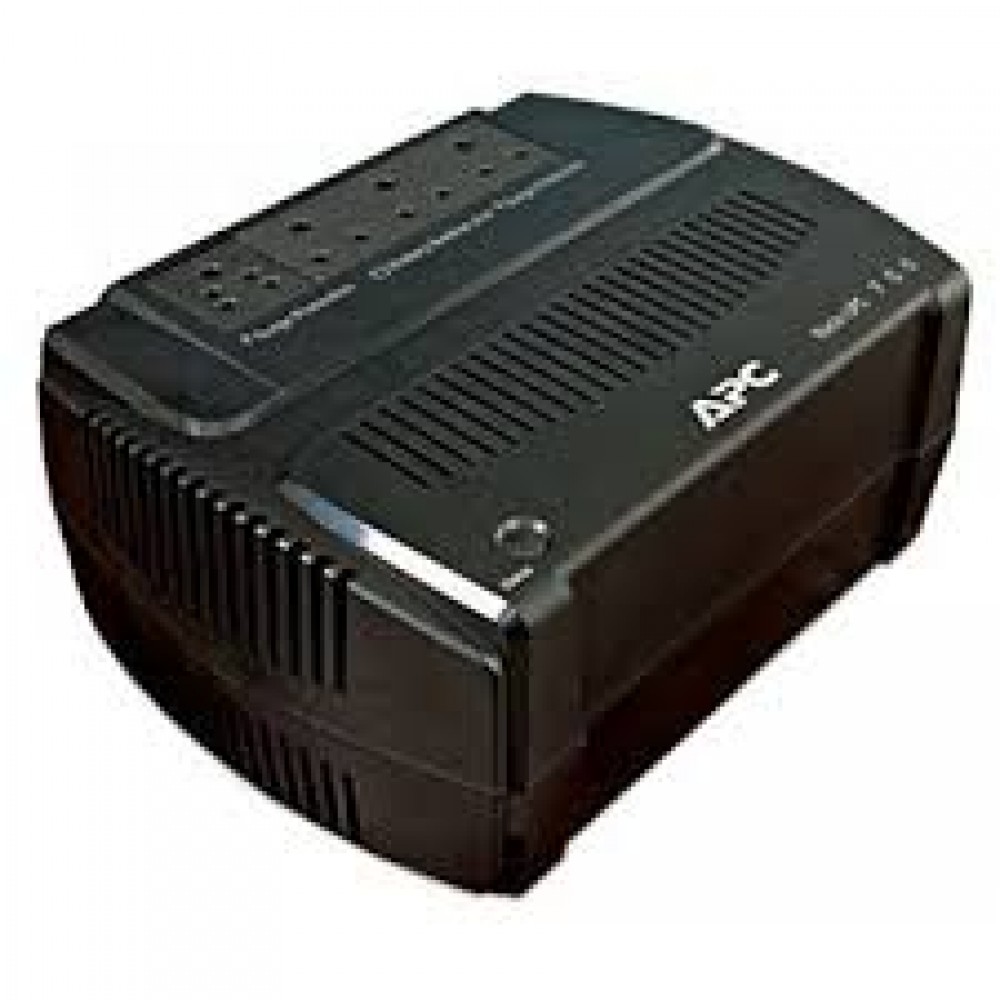

Specifications of APC BE700Y-IN Offline UPS 700VA
Output power capacity
420 Watts / 700 VA
Max Configurable Power (Watts)
420 Watts / 700 VA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 63 Hz
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(1) India 3-pin 6A (selector_surgetitle)
(3) India 3-pin 6A (Battery Backup)
Nominal Input Voltage
230V
Input frequency
50 Hz +/- 3 Hz
Input Connections
India 3-pin 6A
Cord Length
0.65 meters
Number of Power Cords
1
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time
8 hour(s)
Battery Volt-Amp-Hour Capacity
144
Runtime
View Runtime Graph
Interface Port(s)
USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rating
180 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
130 , 13.0 cm
Maximum Width
220 , 22.0 cm
Maximum Depth
290 , 29.0 cm
Net Weight
9.0 kg
Shipping weight
10.0 kg
Shipping Height
170 , 17.0 cm
Shipping Width
270 , 27.0 cm
Shipping Depth
410 , 41.0 cm
Color
Black
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-5 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-3000 meters
Audible noise at 1 meter from surface of unit
45.0 dBA
Online thermal dissipation
42.68 BTU/hr
Standard warranty
2 years repair or replace
RoHS
REACH
REACH: Contains No SVHCs
