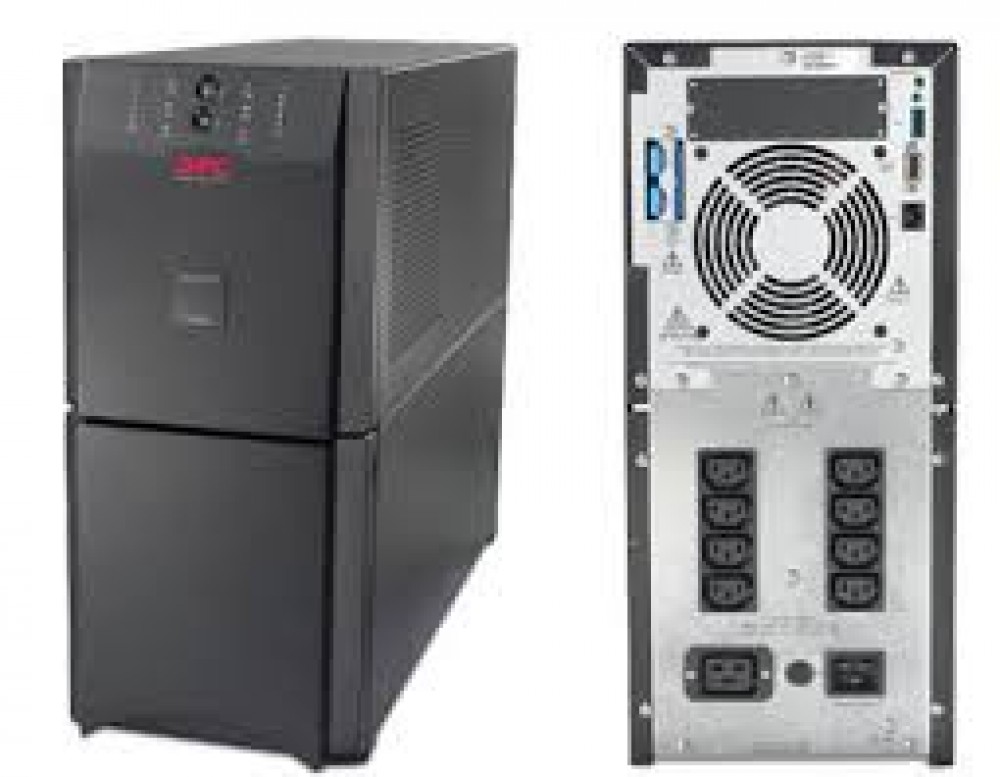

Specifications of APC SUA3000UXI Offline UPS 3000VA
Output power capacity
2.7 KWatts / 3.0 kVA
Max Configurable Power (Watts)
2.7 KWatts / 3.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
Transfer Time
2ms typical
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C20 inlet
Input voltage range for main operations
160 - 286 V
Input voltage adjustable range for mains operation
151 - 302 V
Number of Power Cords
1
Battery type
No internal battery - uses external battery system
Replacement Battery
RBC55
Replacement battery cartridge note
Unit ships without batteries--see UXI brochure for recharge times.
RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-XL-3000VA-230V-No-Battery
Interface Port(s)
DB-9 RS-232 , SmartSlot , USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlotâ„¢ Interface Quantity
1
Surge energy rating
480 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
432 , 43.2 cm
Maximum Width
196 , 19.6 cm
Maximum Depth
544 , 54.4 cm
Net Weight
28.64 kg
Shipping weight
33.64 kg
Shipping Height
559 , 55.9 cm
Shipping Width
381 , 38.1 cm
Shipping Depth
762 , 76.2 cm
Color
Beige
Units per Pallet
3.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
53.0 dBA
Online thermal dissipation
375.0 BTU/hr
Approvals
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Standard warranty
2 years repair or replace
RoHS
Compliant
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
